ricky87 Posted October 13, 2009 Report Share Posted October 13, 2009 Hi guys I need to set up port fowarding for my modem but dont know which one of these is closest to my modem, T-KD-318-EUI Thats my modem make^^ So which should i select from this list?? http://www.portforward.com/english/routers...routerindex.htm This is what i am looking to do, http://worms2d.info/Hosting_Guide i play this game and it wanted me to forward traffic on port 17011 Thank you Link to comment Share on other sites More sharing options...
arun360 Posted October 13, 2009 Report Share Posted October 13, 2009 Are you using a modem+router or a router that connects to your ADSL modem? Link to comment Share on other sites More sharing options...
ayush12ice Posted October 13, 2009 Report Share Posted October 13, 2009 if i may, i also needed help with port forwarding. need to open a port for uTorrent. I m using the airtel provided Beetel220BX Adsl2+ Modem with A D-Link Wi-fi router(DIR-300), the pc has a wired connection to the router. Link to comment Share on other sites More sharing options...
arun360 Posted October 13, 2009 Report Share Posted October 13, 2009 Ayush, Follow the instructions on this page for port forwarding on the Dlink. http://www.portforward.com/english/routers...00/Utorrent.htm Next you'll need to do the same on your modem. http://www.portforward.com/english/routers...BX/Utorrent.htm Follow all the steps and it should work like a charm. Link to comment Share on other sites More sharing options...
ricky87 Posted October 13, 2009 Author Report Share Posted October 13, 2009 Are you using a modem+router or a router that connects to your ADSL modem? Its only a ADSL modem which connects directly to my PC using a splitter and ethernet cable. Link to comment Share on other sites More sharing options...
arun360 Posted October 13, 2009 Report Share Posted October 13, 2009 T-90, Do you know how to get to the modem configuration page? It is usually 192.168.1.1. Go there and tell me if you have an option called NAT, Virtual Servers or Port Forward. Link to comment Share on other sites More sharing options...
ayush12ice Posted October 13, 2009 Report Share Posted October 13, 2009 Thanks Arun my Beetel modem's config page is different than the given in the guide. It doesn't have any option named NAT. It just has: Device Info DSL Status WAN LAN Password DSL Settings Reboot None of these have NAT option in them Link to comment Share on other sites More sharing options...
arun360 Posted October 13, 2009 Report Share Posted October 13, 2009 Ayush, try 192.168.1.1/main.html Link to comment Share on other sites More sharing options...
ricky87 Posted October 13, 2009 Author Report Share Posted October 13, 2009 T-90,Do you know how to get to the modem configuration page? It is usually 192.168.1.1. Go there and tell me if you have an option called NAT, Virtual Servers or Port Forward. Arun, saw an option of virtual server under advanced settings, there was a routing option also, saw NAT under WAN and it was enabled Link to comment Share on other sites More sharing options...
arun360 Posted October 13, 2009 Report Share Posted October 13, 2009 I'm heading to bed now, T-90. Can you post a screenshot of the options under virtual server settings? Anyone who's forwarded a port should be able to help. Otherwise, I'll check this first thing tomorrow afternoon. Link to comment Share on other sites More sharing options...

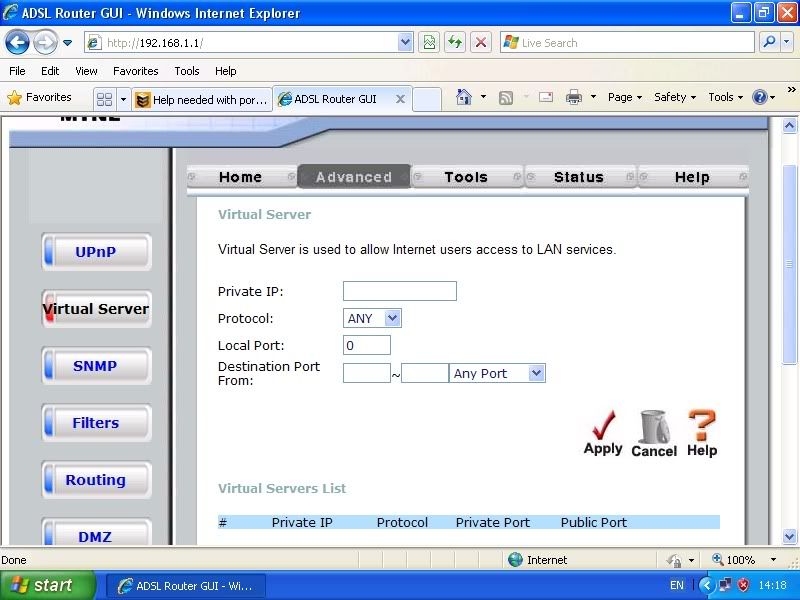

ricky87 Posted October 14, 2009 Author Report Share Posted October 14, 2009 I'm heading to bed now, T-90. Can you post a screenshot of the options under virtual server settings? Anyone who's forwarded a port should be able to help. Otherwise, I'll check this first thing tomorrow afternoon. Here it is Arun Is my modem not capable of doing port forwarding? Link to comment Share on other sites More sharing options...
_KaRaN_ Posted October 14, 2009 Report Share Posted October 14, 2009 Here it is Arun Is my modem not capable of doing port forwarding? type d ip address of d device on which ur gonna play d game(console or pc) i dont knw bout local port.. cus ders no local port option in my virtual server list so i cant say bout loal port.. select d protocol TCP/UDP as required and key in d port number in d destination port box Link to comment Share on other sites More sharing options...
Ne0 Posted October 14, 2009 Report Share Posted October 14, 2009 Why do you need port forwarding with a modem I thought you needed to do that only if you have a router in between ? BTW, T-90 check the routing section mentioned above in the screen shot. Should have the option to specify port forwarding (if any). Link to comment Share on other sites More sharing options...
ricky87 Posted October 14, 2009 Author Report Share Posted October 14, 2009 I will wait for Arun, he knows how to do this Billy- I dont even know the difference between a router and modem Link to comment Share on other sites More sharing options...
arun360 Posted October 14, 2009 Report Share Posted October 14, 2009 T-90, I'm not a 100% sure of this either Like Billy says you could also look in the Routing section if the below steps don't work. For now, let's try this. Do an ipconfig on your pc and note down the IP address. Enter this address in Private IP. Leave Protocol to its default setting. Local Port, enter 17011. Destination port, enter 17011. Click apply. NO WAIT, before you click apply, tell me the other options under ANY PORT. You shouldn't save it with ANY PORT selected. Link to comment Share on other sites More sharing options...

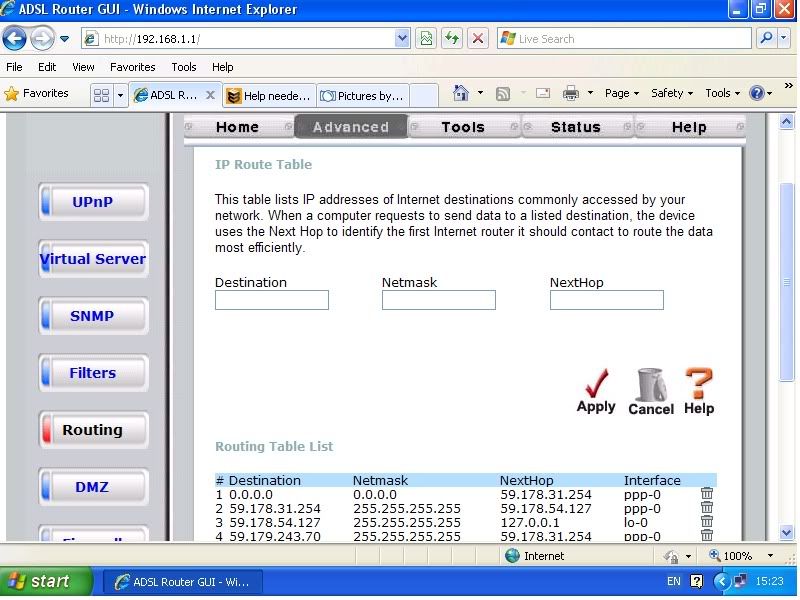

ricky87 Posted October 14, 2009 Author Report Share Posted October 14, 2009 T-90, I'm not a 100% sure of this either Like Billy says you could also look in the Routing section if the below steps don't work.For now, let's try this. Do an ipconfig on your pc and note down the IP address. Enter this address in Private IP. Leave Protocol to its default setting. Local Port, enter 17011. Destination port, enter 17011. Click apply. NO WAIT, before you click apply, tell me the other options under ANY PORT. You shouldn't save it with ANY PORT selected. Arun- Sorry but how do i do IPconfig? I know the public IP address of my PC, is that what i need to enter? And the options in ANY PORT are: Single port, port range, and safe ports.. and options in Protocol are : Any, TCP, UDP, ICMP also here is what the routing section looks like: Link to comment Share on other sites More sharing options...
arun360 Posted October 14, 2009 Report Share Posted October 14, 2009 Okay, I've revised the steps based on your inputs. Start over. 1. Do an ipconfig on your pc and note down the IP address. Start> Run> Type cmd> OK> type ipconfig in the black window> Note down the IP address Enter this address in Private IP. 2. Leave Protocol to its default setting. 3. Local Port, enter 17011. (we'll need to revisit this again) 4. Destination port, enter 17011. 5. Under ANYPORT, select the option Single port. 6. Click Apply. 7. Restart modem, connect to internet, Now check your connectivity as described on the Hosting page. When setting up hosting, you don't need to ask someone to try joining your game to see if it worked - you can check yourself. To do this: 1. Host the game as usual (you don't need to host it on WormNET, a Direct IP game will work too) 2. Minimize the game (by clicking on the bottom of the screen, or pressing Shift+Esc) 3. Open canyouseeme.org 4. Enter 17011 as the port (unless you changed it) 5. Click Check The website will tell you whether your computer is connectable on the port you specified. Remember that this will only work while you're actually hosting a game! Link to comment Share on other sites More sharing options...
ayush12ice Posted October 14, 2009 Report Share Posted October 14, 2009 Ayush, try 192.168.1.1/main.html thanks man i was just typing in 192.168.1.1 . Link to comment Share on other sites More sharing options...
ricky87 Posted October 14, 2009 Author Report Share Posted October 14, 2009 Okay, I've revised the steps based on your inputs. Start over. 1. Do an ipconfig on your pc and note down the IP address. Start> Run> Type cmd> OK> type ipconfig in the black window> Note down the IP address Enter this address in Private IP. 2. Leave Protocol to its default setting. 3. Local Port, enter 17011. (we'll need to revisit this again) 4. Destination port, enter 17011. 5. Under ANYPORT, select the option Single port. 6. Click Apply. 7. Restart modem, connect to internet, Now check your connectivity as described on the Hosting page. Not working Arun While testing, it says cannot establish a connection with my service Link to comment Share on other sites More sharing options...
Ne0 Posted October 14, 2009 Report Share Posted October 14, 2009 Not working Arun who's your isp? Sometimes the ISP blocks certain ports. Link to comment Share on other sites More sharing options...
